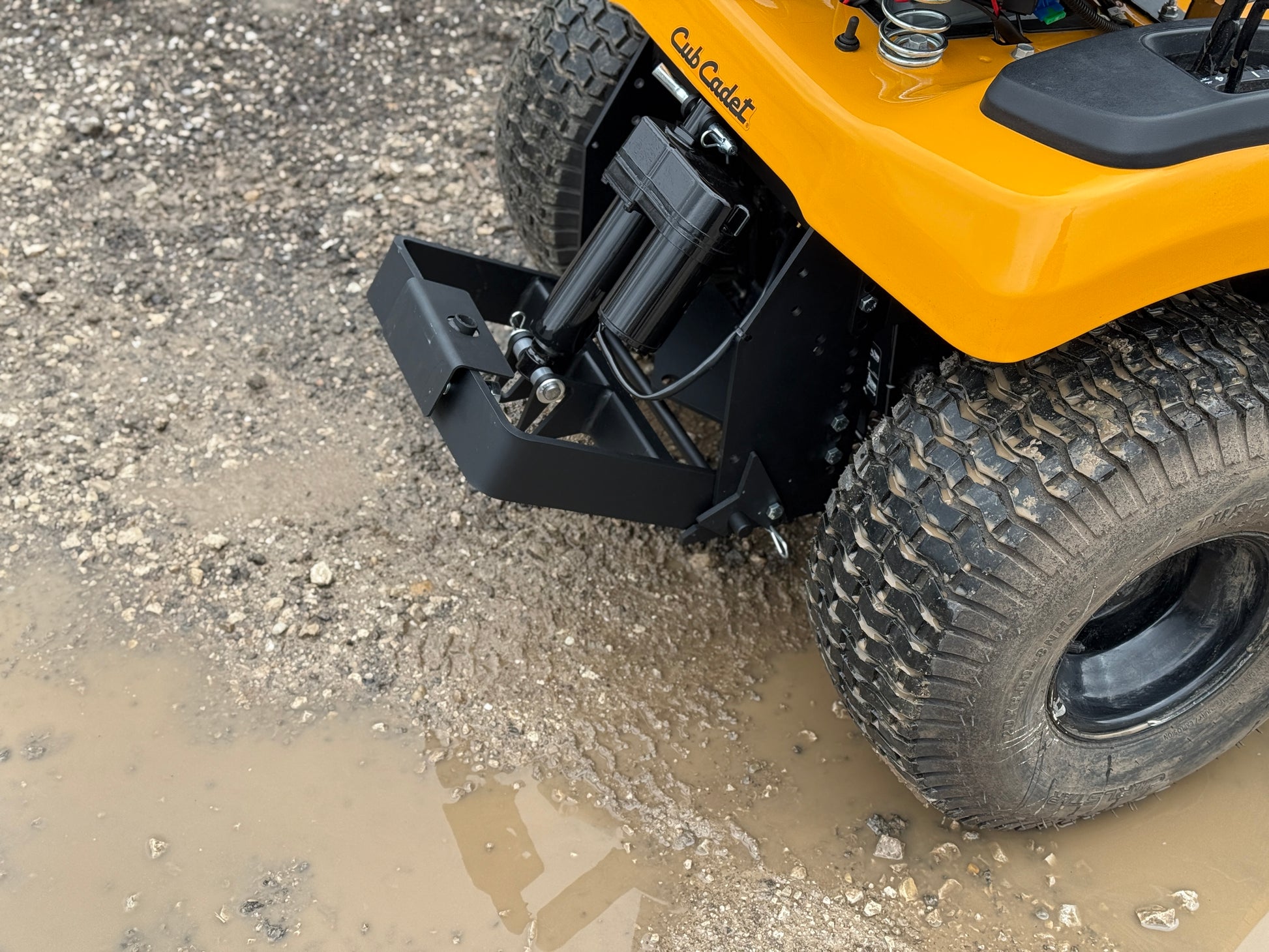

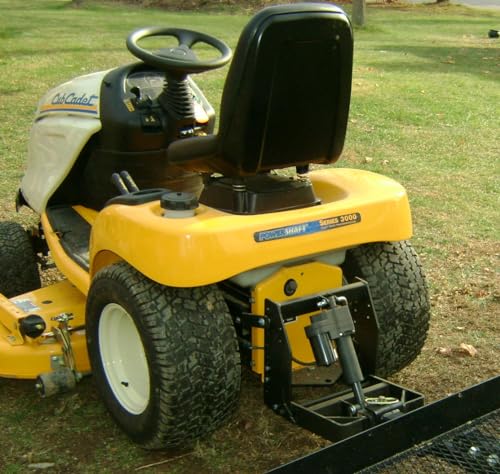

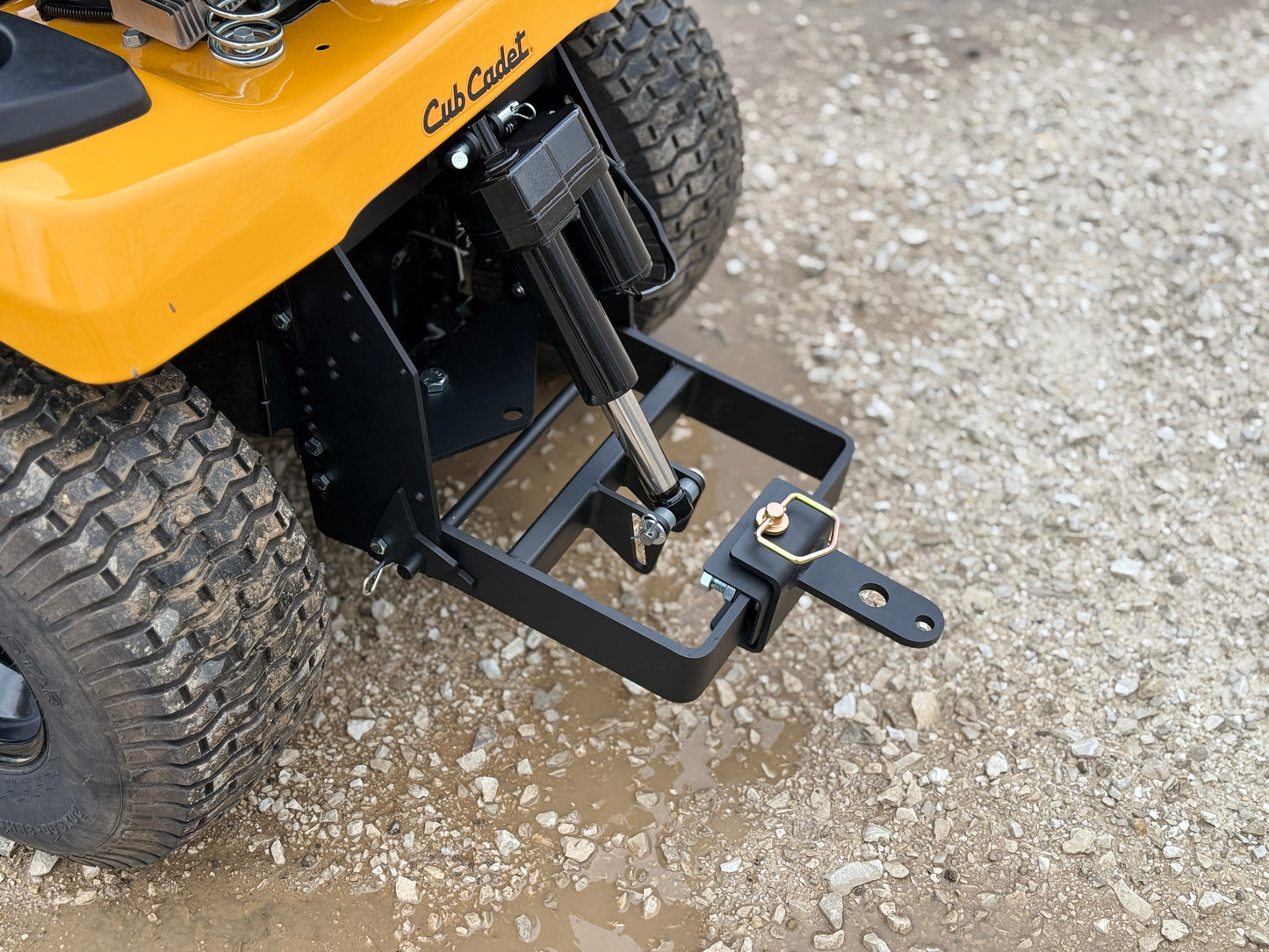

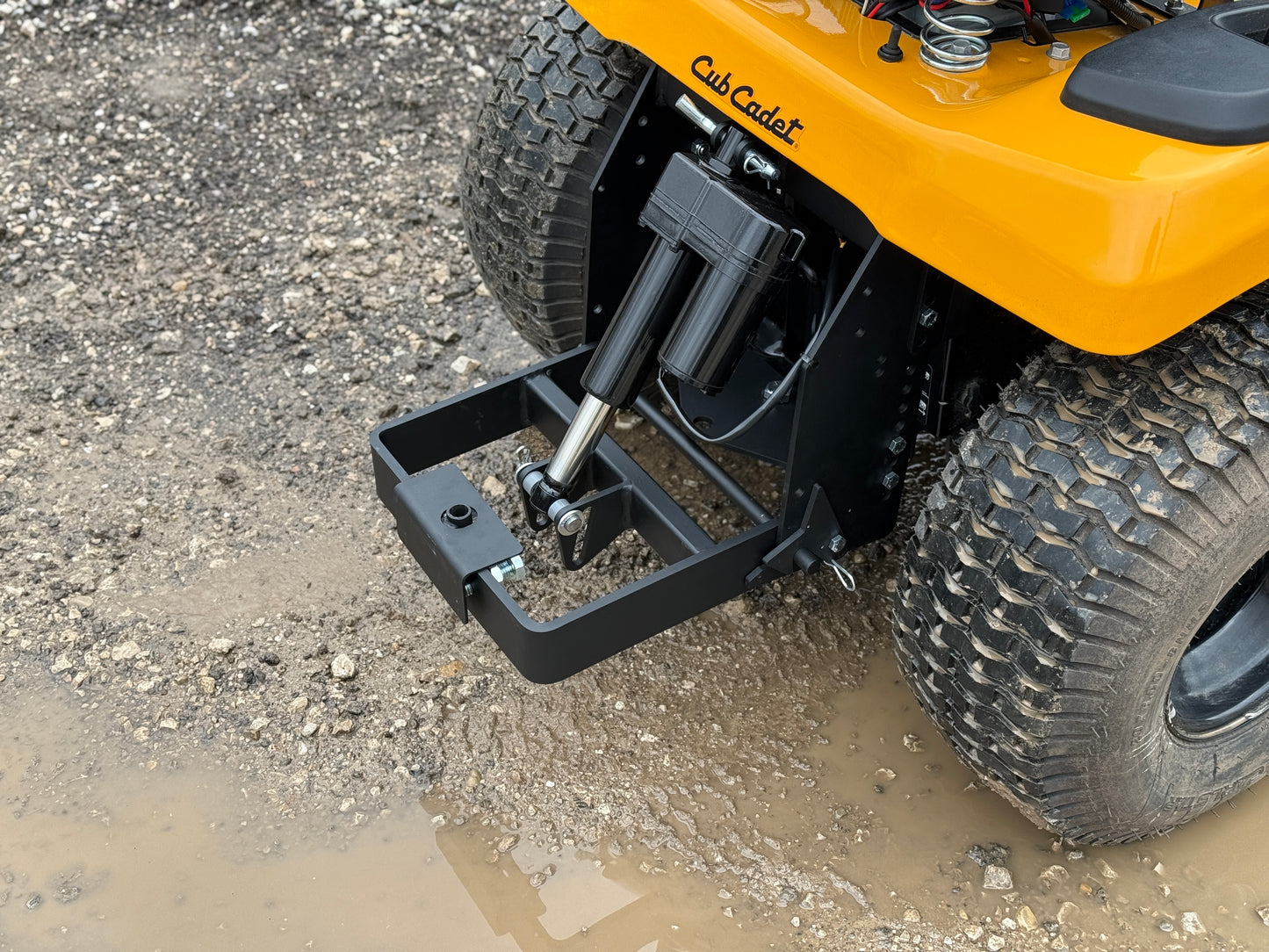

Universal Sleeve Hitch

Transform your garden tractor's capabilities with our heavy-duty Universal Sleeve Hitch attachment system featuring a powerful electric linear actuator for effortless implement control.

Specifications:

• Capacity: 350 lbs at the hitch pin
• Range of Powered Motion: 7" (greater in float mode)
• Lifted Height (typical install): 13" at top of hitch
• Midpoint Height: 9" at top of hitch when parallel to ground
• Lowered Height: 6" at top of hitch
• Sleeve Hitch Receiver: ANSI One Point Standard Type
• Color: Black Powder Coat
• Sleeve Hitch Width: 13" outside, 12-1/2" inside

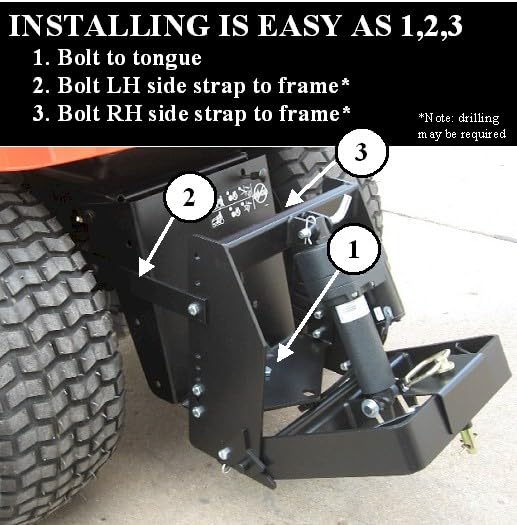

This complete sleeve hitch system includes a premium electric linear actuator and everything you need to start using rear attachments with your garden tractor. The sleeve hitch bolts directly to your trailer tongue, with upper brackets that attach to each side of your tractor's frame. Mounting is flexible to accommodate different frame widths, ensuring a solid attachment point for implements on Cub Cadet, Craftsman, Case Ingersoll, Toro, Simplicity, Bolens, Ariens, and many other garden tractor brands.

The heart of this system is the powerful electric linear actuator that provides smooth, controlled lifting and lowering of implements with the included wiring harness and toggle switch. This electric lift system gives you convenient control right from your seat - choose between locked position mode with down pressure capability or float mode for terrain-following applications. The built-in stability control system with adjustable bolts limits side-to-side motion for precise operation of your attachments. When not in use, the main hitch can be quickly removed with just two latches and one pin, while the integrated trailer tongue allows you to still tow equipment when needed.

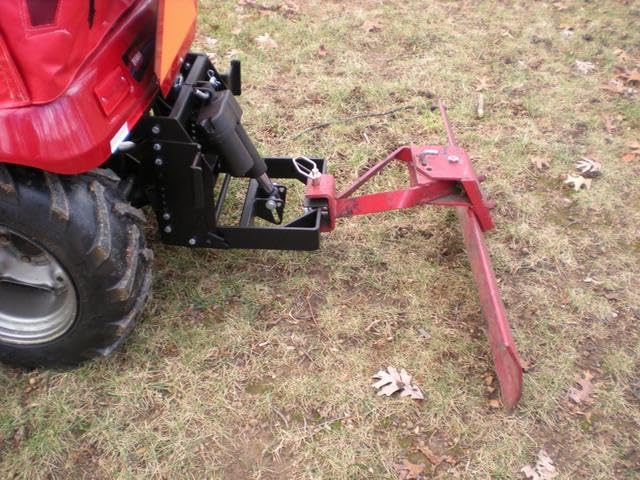

Compatible with any standard ANSI sleeve hitch attachment including plows, box scrapers, rakes, and more, this versatile electric actuator system gives you and your quality garden tractor more opportunities for productive work and enjoyment throughout the year.
