Universal Sleeve Hitch

$975.00 USD

Sale Sold out

est. 1-2 week lead time (TWL on backorder)

Quantity

Bundle :

The Foundation i

The Foundation

Included:

TWL Package i

TWL Package

Included:

Transform your garden tractor's capabilities with our heavy-duty Universal Sleeve Hitch attachment system featuring a powerful electric linear actuator for effortless implement control.

Specifications:

Capacity: 350 lbs at the hitch pin
Range of Powered Motion: 7" (greater in float mode)
Lifted Height (typical install): 13" at top of hitch
Midpoint Height: 9" at top of hitch when parallel to ground
Lowered Height: 6" at top of hitch
Sleeve Hitch Receiver: ANSI One Point Standard Type
Color: Black Powder Coat
Sleeve Hitch Width: 13" outside, 12-1/2" inside

This complete sleeve hitch system includes a premium electric linear actuator and everything you need to start using rear attachments with your garden tractor. The sleeve hitch bolts directly to your trailer tongue, with upper brackets that attach to each side of your tractor's frame. Mounting is flexible to accommodate different frame widths, ensuring a solid attachment point for implements on Cub Cadet, Craftsman, Case Ingersoll, Toro, Simplicity, Bolens, Ariens, and many other garden tractor brands.

The heart of this system is the powerful electric linear actuator that provides smooth, controlled lifting and lowering of implements with the included wiring harness and toggle switch. This electric lift system gives you convenient control right from your seat - choose between locked position mode with down pressure capability or float mode for terrain-following applications. The built-in stability control system with adjustable bolts limits side-to-side motion for precise operation of your attachments. When not in use, the main hitch can be quickly removed with just two latches and one pin, while the integrated trailer tongue allows you to still tow equipment when needed.

Compatible with any standard ANSI sleeve hitch attachment including plows, box scrapers, rakes, and more, this versatile electric actuator system gives you and your quality garden tractor more opportunities for productive work and enjoyment throughout the year.

View full details

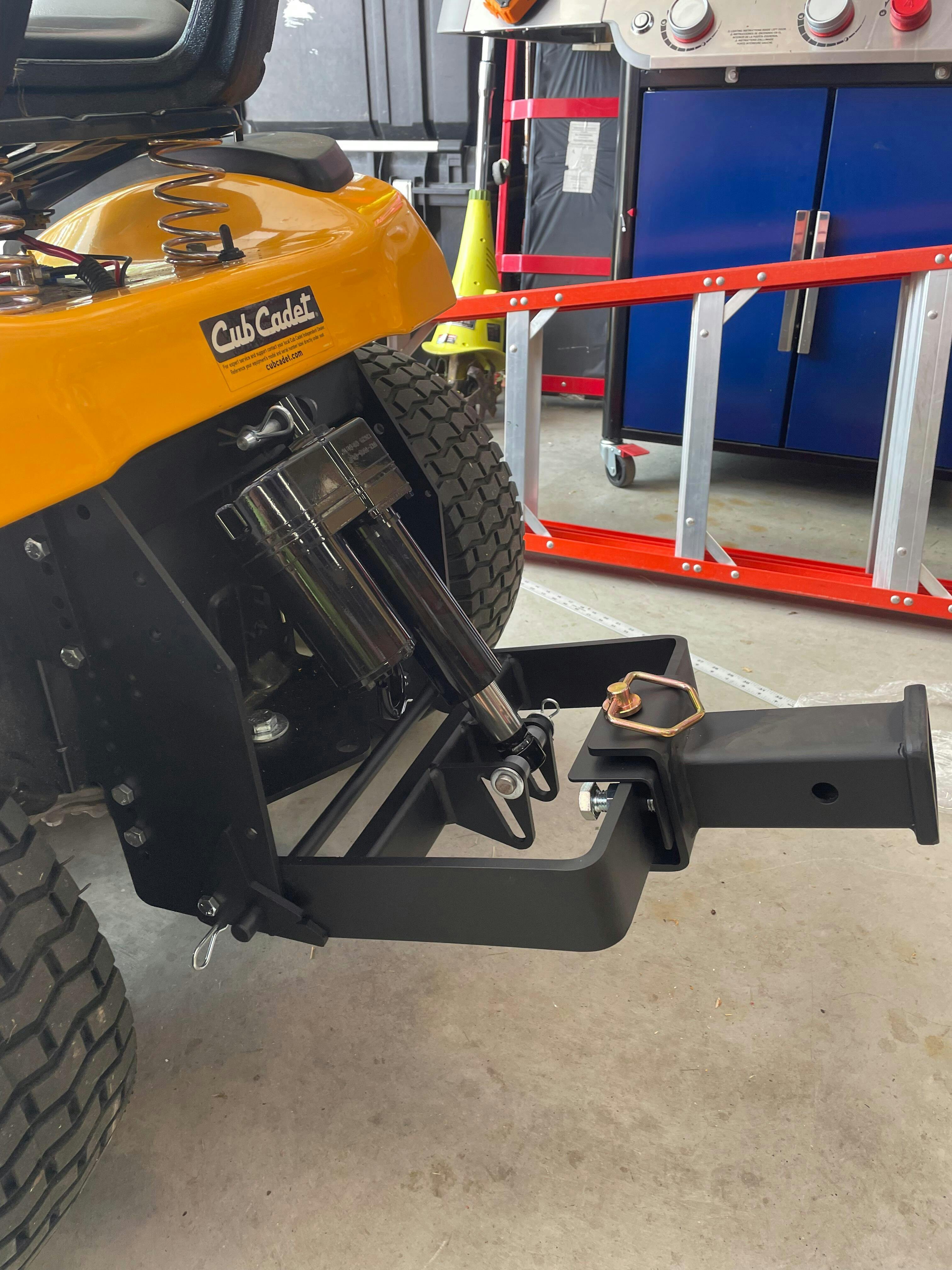

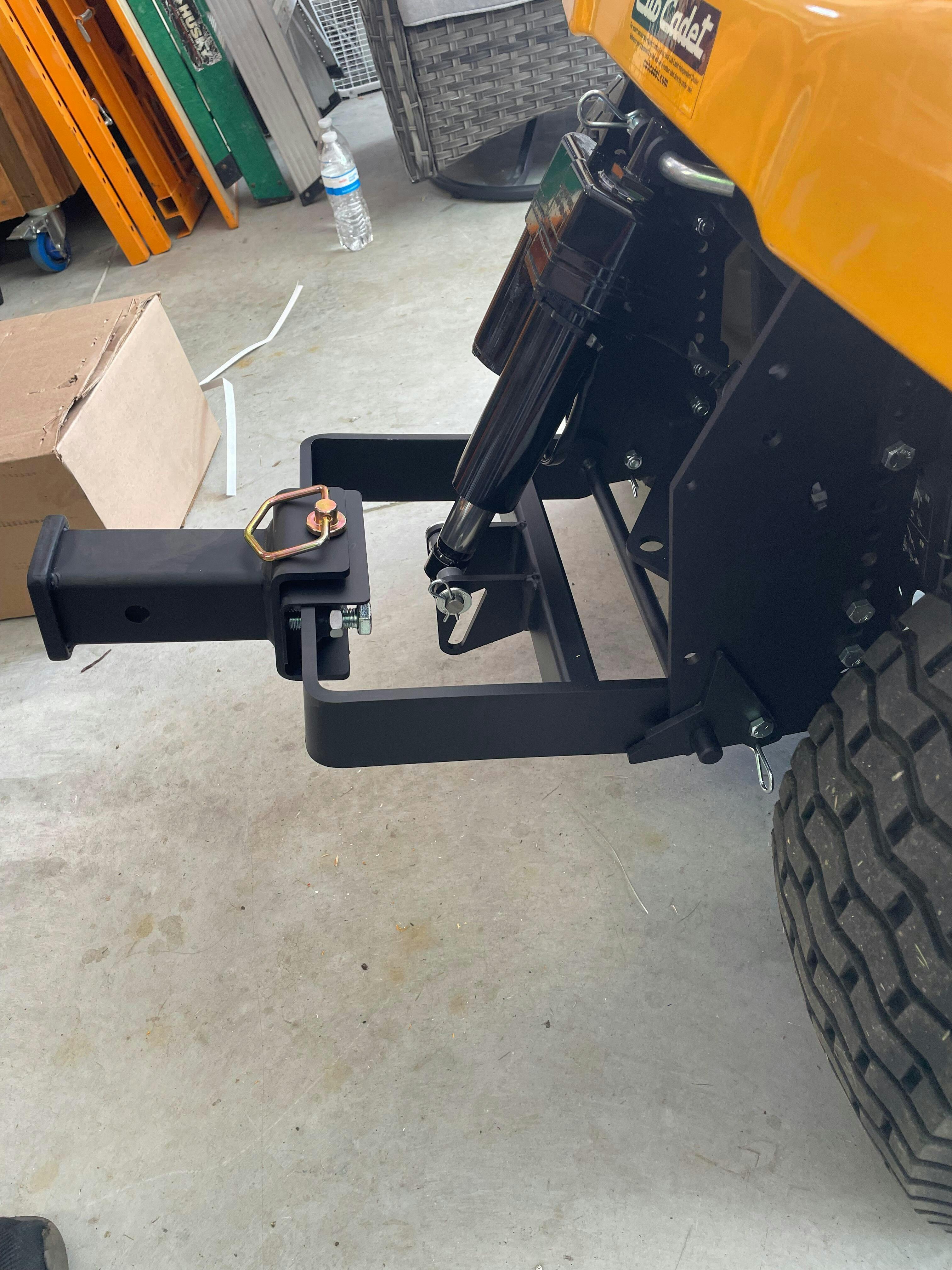

I purchased this USH with TWL Package for my Cub Cadet XT1/LT42 tractor. As well as the Xt1/xt2 bracket adapters.
While unboxing, I noted every part is extra heavy duty. There is some serious steel here. I have no doubt it will outlast my current Cub and also be used on my future xt2.

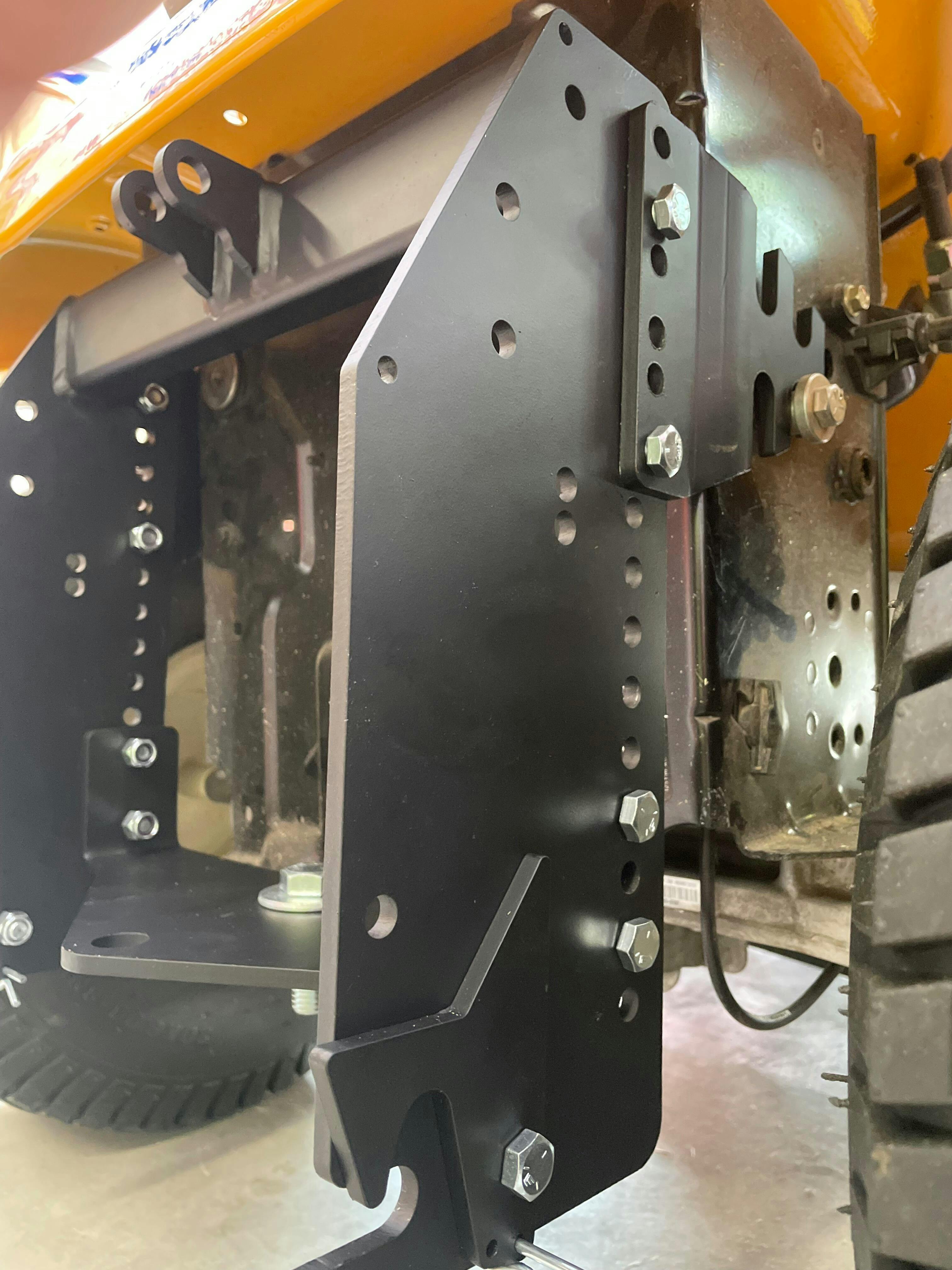

The XT1/XT2 adapter kit worked perfect and made the install a snap. Highly recommended for CC owners.
The USH arrived with all necessary hardware and wiring, as needed. They even add zip ties for wires. Often, the smallest things matter the most.
I did have a few questions while installing, and Mitch @ JP was quick to respond and assist in answering all of my questions. Customer service get an A+ .
I purchased ( from other manufacturers ) a 38” box blade( sleeve hitch mount ) and a 12” ripper shank( receiver hitch mount ) . I used both on a lawn leveling project. The USH made the work so much easier. Just turn around and hit the switch to raise and lower implements.
The strength of the linear actuator is amazing. I sank the ripper down 10” without issue. — note — my small Cub was not able to pull with the shank that deep. Maximum depth I could pull was 6”. Please bear in mind the limits of a garden tractor — . It also lifted me @ 150 lbs while standing on the receiver hitch. Very impressed so far.
In summary ; very well designed/ engineered, great customer service. The USH saved me a ton of sweat and shoveling on my first of many projects in my yard.
Next on my wish list is a JBucket. This will complete the package and save my back even more :)
Thank you Johnny Products !
